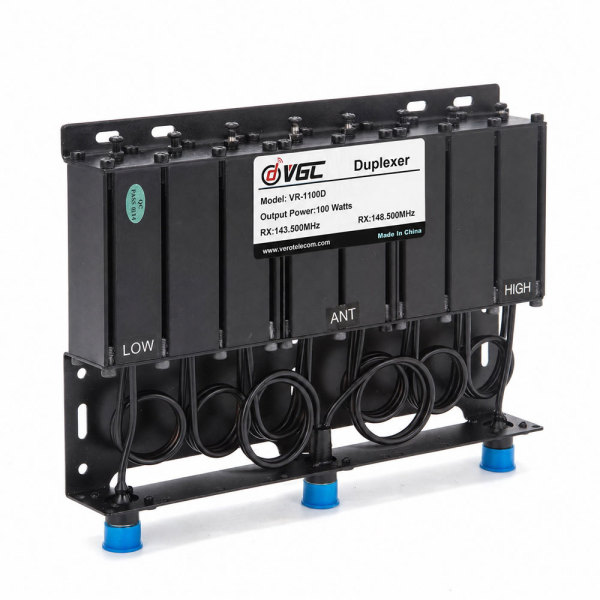

VR-1100D VHF 136-174MHz 100W Base Station Cavity Duplexer for Radio Infrastructure

VR-1100D VHF 136-174MHz 100W Base Station Cavity Duplexer for Radio Infrastructure

Item NO.: VR-1100D
Inquiry
Industrial B2B Support
Professional wireless infrastructure for global distributors and system integrators.
  • ✓ OEM/ODM Excellence: Custom firmware and private labeling.
  • ✓ Bulk Fulfillment: Priority lead times and inventory stability.
  • ✓ Technical Support: Direct engineer-to-engineer assistance.
  • ✓ Global Compliance: Certified hardware for regulated markets.
FCC
CE RED
RoHS
ISO

Detail

  • 100W BASE STATION INFRASTRUCTURE: Form-engineered to handle 100W continuous backbone loads without signal clipping.
  • EXTREME 80dB SKIRT ISOLATION: Massive aluminum cavity walls block high-power intermodulation completely.
  • PREMIUM INVAR COMPENSATION: Secures stable frequency grids across harsh mountain peaks and unconditioned sites.
  • TELECOM OEM PROCUREMENT: Fully customizable with N-Female or DIN connectors according to strict network layout specs.
VR-1100D INFRASTRUCTURE | 100W HIGH POWER STATION | VHF 136-174MHz | NATIONAL SAFETY GRADE
100W Full Backbone Infrastructure Solution

VR-1100D | VHF 100W Base Station Duplexer.

The pinnacle of high-power RF duplex engineering. Handles 100 Watts of continuous base station load with exceptional skirt selectivity across the 136-174MHz band.

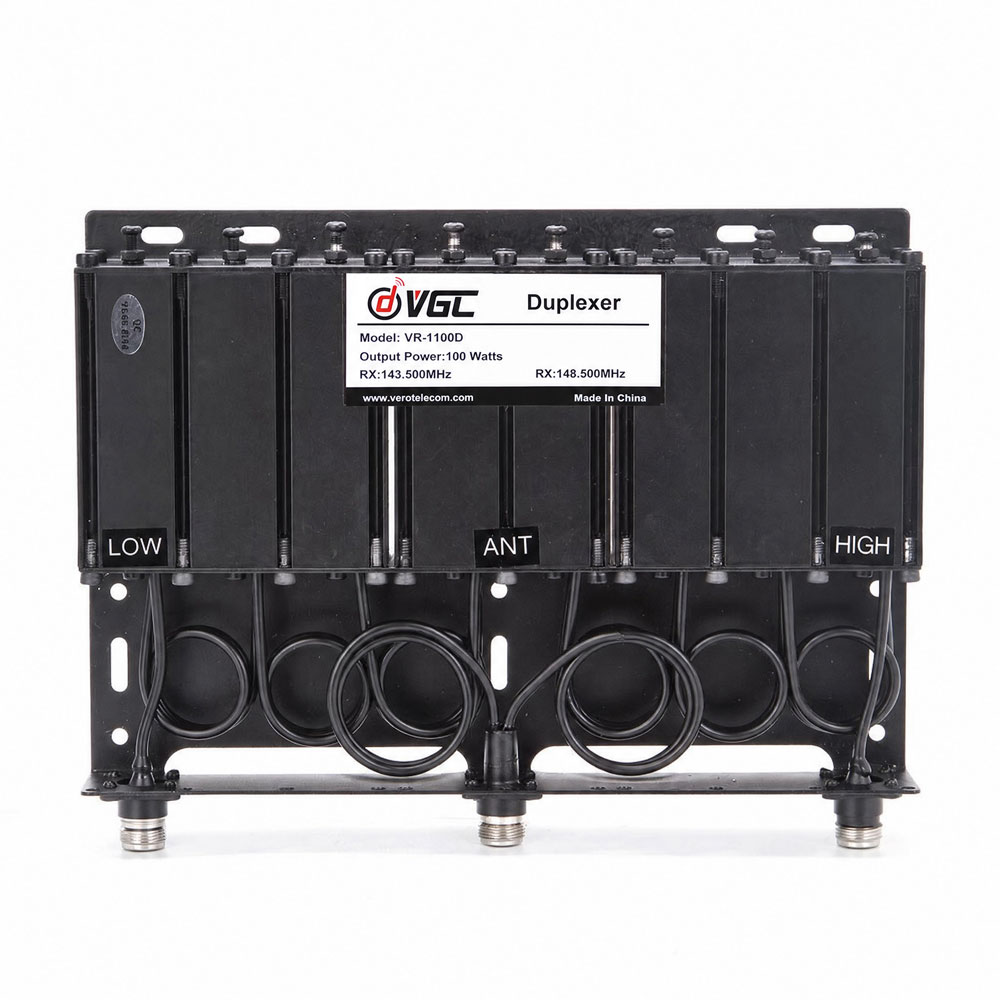

VR-1100D VHF 136-174MHz 100W Base Station Cavity Duplexer
136-174 MHz VHF Backbone Band
100 Watts Continuous 100% Duty
≥ 80 dB Extreme Isolation
≤ 1.2 dB Premium Insertion Loss
National Backbone Architecture

Massive Resonant Cavities.
Zero Intermodulation Breakdown.

The VR-1100D is engineered for elite telecommunications integration. Featuring extra-large cavity cells, it offers maximum power headroom to completely eliminate dielectric fatigue, maintaining stable public safety and coastal dispatch links around the clock.

📦 Target B2B Application Matrix
  • Government Infrastructure: Built for state-wide public safety trunked VHF base racks.
  • Deep Sea Marine Base: Drives high-power regional maritime safety transmitters.
  • Critical Infrastructure: Selected by oil, gas, and power utility grids for backbone links.

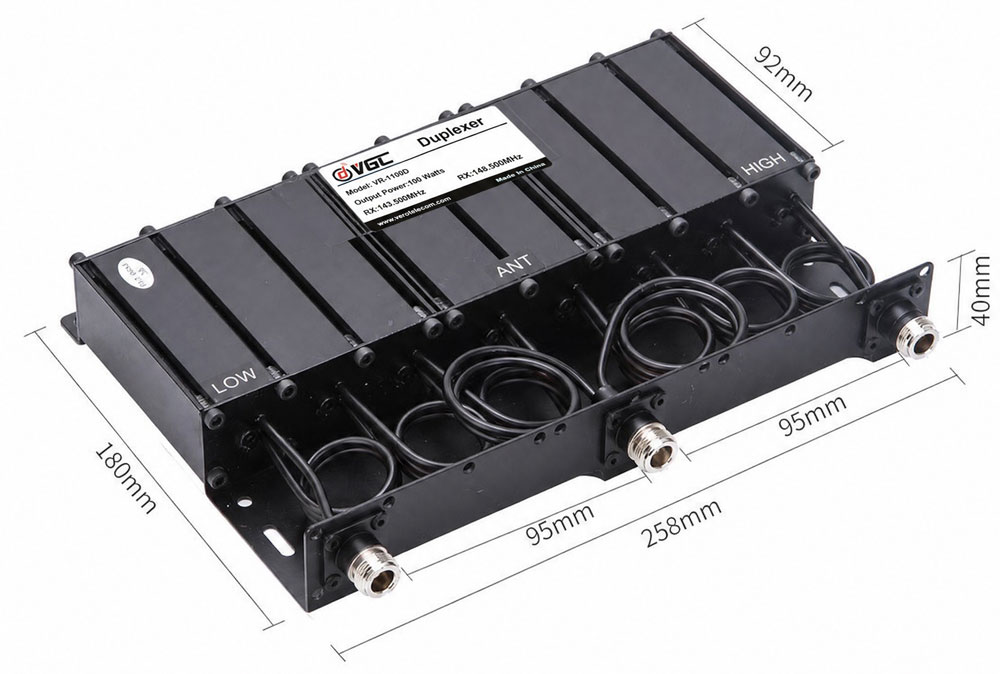

VR-1100D VHF 100W Infrastructure Duplexer Vector Analysis

Technical Specifications

Parameter Specification Value
Model Number VR-1100D
Frequency Range 136 – 174 MHz (VHF)
Power Handling 100 Watts Continuous (100% Duty)
Insertion Loss ≤ 1.2 dB
TX/RX Isolation ≥ 80 dB
Thermal Protection Premium Invar Temperature Rods Milled Tuning
