VR-425D UHF 400-480MHz 25W Cavity Duplexer for Commercial Radio Repeater Systems

VR-425D UHF 400-480MHz 25W Cavity Duplexer for Commercial Radio Repeater Systems

Item NO.: VR-425D
Inquiry
Industrial B2B Support
Professional wireless infrastructure for global distributors and system integrators.
  • ✓ OEM/ODM Excellence: Custom firmware and private labeling.
  • ✓ Bulk Fulfillment: Priority lead times and inventory stability.
  • ✓ Technical Support: Direct engineer-to-engineer assistance.
  • ✓ Global Compliance: Certified hardware for regulated markets.
FCC
CE RED
RoHS
ISO

Detail

  • HIGH-REJECTION UHF CAVITIES: Form-milled aluminum walls keep transmitter noise completely away from your receiver port.
  • 400-480MHz AGILITY RANGE: Tuned effortlessly across the entire UHF spectrum to capture commercial trunking long-tail searches.
  • LOW REPEATER PASSBAND SHIELD: Limits line insertion loss below 1.0dB, giving your infrastructure top coverage reach.
  • VNA ALIGNMENT COMPLIANCE: Every unit undergoes exhaustive vector analysis prior to dispatch to match your precise frequency offset.
VR-425D SPECIFIC | ENTERPRISE BUILDING COMPLEX | UHF 400-480MHz | PREMIUM NOTCH REJECTION
25W Enterprise UHF Coverage Infrastructure

VR-425D | UHF 25W Cavity Duplexer.

Industrial-tier UHF duplex splitting engineered for real-world enterprise architectures. Isolates concurrent 25W TX/RX paths inside complex, crowded spectrum networks.

VR-425D UHF 400-480MHz 25W Business Cavity Duplexer
400-480 MHz UHF Core Band
25 Watts Continuous Rating
≥ 75 dB Notch Suppression
≤ 1.0 dB Passband Insertion Loss
Complex Indoor Coverage

High-Q Internal Synthesis.
Eradicates Receiver Blindness.

The VR-425D utilizes precision-milled aluminum cavity sections to deliver greater than 75dB isolation boundaries. This guarantees that your UHF business repeater remains completely free from desensitization, even when co-located on high-density telecom rooftops.

📦 Target B2B Application Matrix
  • High-Rise Office Systems: Provides dependable single-antenna trunking for facility maintenance staff.
  • Underground Logistic Hubs: Maintains signal throughput inside dense concrete basements and shipping docks.
  • Commercial Integrators: An ideal OEM component for building proprietary 25W multi-mode repeater racks.

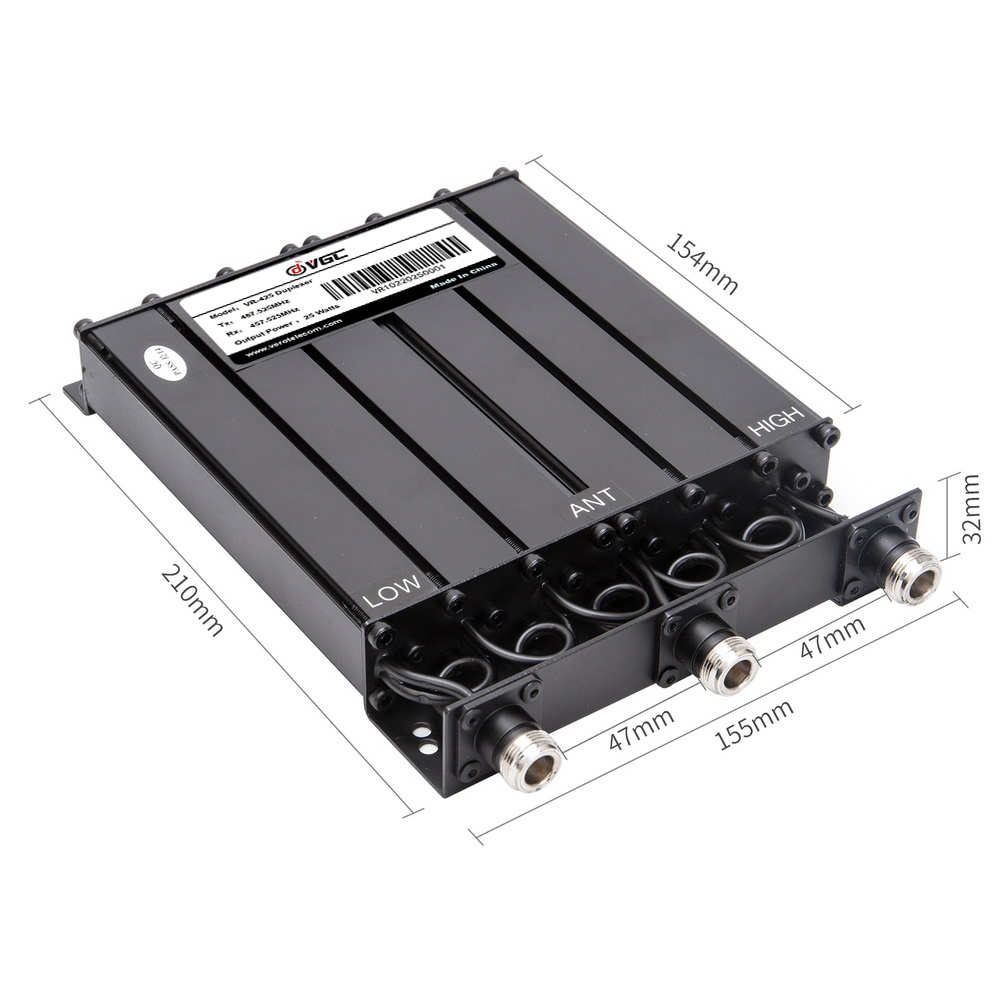

VR-425D UHF 25W Cavity Duplexer Tuning Rejection Grid

Technical Specifications

Parameter Specification Value
Model Number VR-425D
Frequency Range 400 – 480 MHz (UHF)
Power Handling 25 Watts Max
Insertion Loss ≤ 1.0 dB
TX/RX Isolation ≥ 75 dB
RF Interfacing Standard N-Female Sockets (Customizable)
