VR-110D VHF 136-174MHz 10W Mobile Cavity Duplexer for Compact Radio Repeaters

VR-110D VHF 136-174MHz 10W Mobile Cavity Duplexer for Compact Radio Repeaters

Item NO.: 29284112
Inquiry
Industrial B2B Support
Professional wireless infrastructure for global distributors and system integrators.
  • ✓ OEM/ODM Excellence: Custom firmware and private labeling.
  • ✓ Bulk Fulfillment: Priority lead times and inventory stability.
  • ✓ Technical Support: Direct engineer-to-engineer assistance.
  • ✓ Global Compliance: Certified hardware for regulated markets.
FCC
CE RED
RoHS
ISO

Detail

  • COMPACT VEHICULAR DESIGN: Form-engineered to slide into tight spaces, making it perfect for mobile command vehicles and field portable setups.
  • 136-174MHz TUNING GRID: Meticulously centered across the VHF band to capture high-value forestry, marine, and emergency network long-range traffic.
  • 75dB NOTCH SUPPRESSION: Features dense cavity filtering to prevent co-site receiver desensing under continuous transmit loads.
  • FACTORY OEM CUSTOMIZATION: Supports bespoke frequency centering, custom splits, and alternative connector variants directly from our ISO 9001 facility.
VR-110D SPECIFIC | COMPACT MOBILE DESIGN | VHF 136-174MHz | FACTORY DIRECT
10W Vehicular Range Extension

VR-110D | VHF 10W Mobile Duplexer.

The ultimate space-saving RF solution for small-scale and vehicular VHF radio repeaters. Engineered to manage 10 Watts of continuous power across the 136-174MHz band with massive isolation.

VR-110D VHF 136-174MHz 10W Mobile Cavity Duplexer
136-174 MHz VHF Tuning Range
10 Watts Max Power Handling
≥ 75 dB Notch Isolation
Ultra-Compact Chassis Profile
Vehicular RF Integration

Miniaturized Cavity Architecture.
Built for Wilderness Tracking.

The VR-110D is specialized for line-of-sight propagation over open terrains, marine channels, and forestry sectors. Its compact mobile housing allows for effortless installation inside vehicles or tight portable repeater cases, guaranteeing zero spectral desensitization for search and rescue operations.

📦 Target B2B Application Matrix
  • Vehicular Repeaters: Seamlessly drops into mobile dispatch vans and emergency coordination trucks.
  • Marine Fleets: Excellent for coastal patrol boats requiring single-antenna TX/RX multiplexing.
  • Amateur Radio (2m Ham): Ideal for compact 144MHz ham radio repeater clusters where space is at a premium.

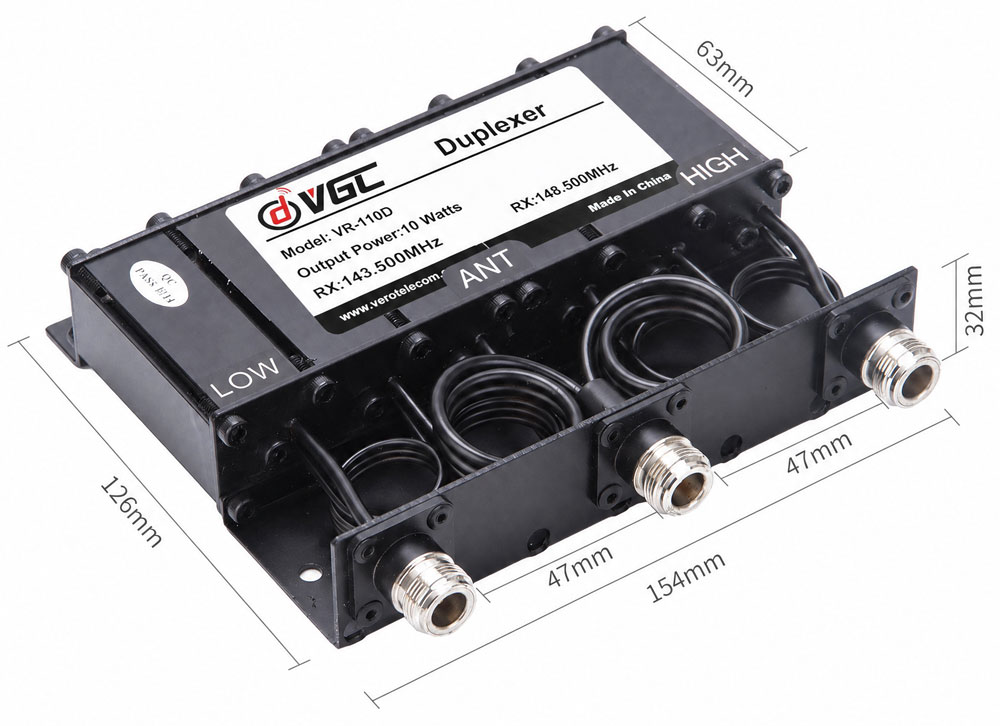

VR-110D VHF Mini Cavity Duplexer Internal Engineering

Technical Specifications

Parameter Specification Value
Model Number VR-110D
Frequency Range 136 – 174 MHz (VHF)
Power Handling 10 Watts Max
Insertion Loss ≤ 1.2 dB
TX/RX Isolation ≥ 75 dB
Connectors N-Female or BNC Customizable
