VR-125D VHF 136-174MHz 25W Cavity Duplexer for Commercial Radio Repeater Systems

VR-125D VHF 136-174MHz 25W Cavity Duplexer for Commercial Radio Repeater Systems

Item NO.: VR-125D
Inquiry
Industrial B2B Support
Professional wireless infrastructure for global distributors and system integrators.
  • ✓ OEM/ODM Excellence: Custom firmware and private labeling.
  • ✓ Bulk Fulfillment: Priority lead times and inventory stability.
  • ✓ Technical Support: Direct engineer-to-engineer assistance.
  • ✓ Global Compliance: Certified hardware for regulated markets.
FCC
CE RED
RoHS
ISO

Detail

  • MID-POWER FLEET MANAGEMENT: Configured for high-duty continuous transmission up to 25W, preventing thermal runaway.
  • THERMAL DRIFT PROTECTION: Internally fitted with premium Invar temperature control elements to withstand unconditioned enclosures.
  • LOW REPEATER INSERTION LOSS: Keeps passband transmission loss strictly below 1.0dB, maintaining pristine coverage layout.
  • B2B PROCUREMENT ASSURANCE: Custom tuned by factory network vector sweeps according to your specific TX/RX frequency separation parameters.
VR-125D SPECIFIC | ENTERPRISE & BUSINESS RELAYS | VHF 136-174MHz | PREMIUM ISOLATION
25W Enterprise Radio Infrastructure

VR-125D | VHF 25W Cavity Duplexer.

The industry standard mid-power duplexer for commercial land mobile radio networks. Manages up to 25 Watts continuous transmit load with ultra-low thermal drift.

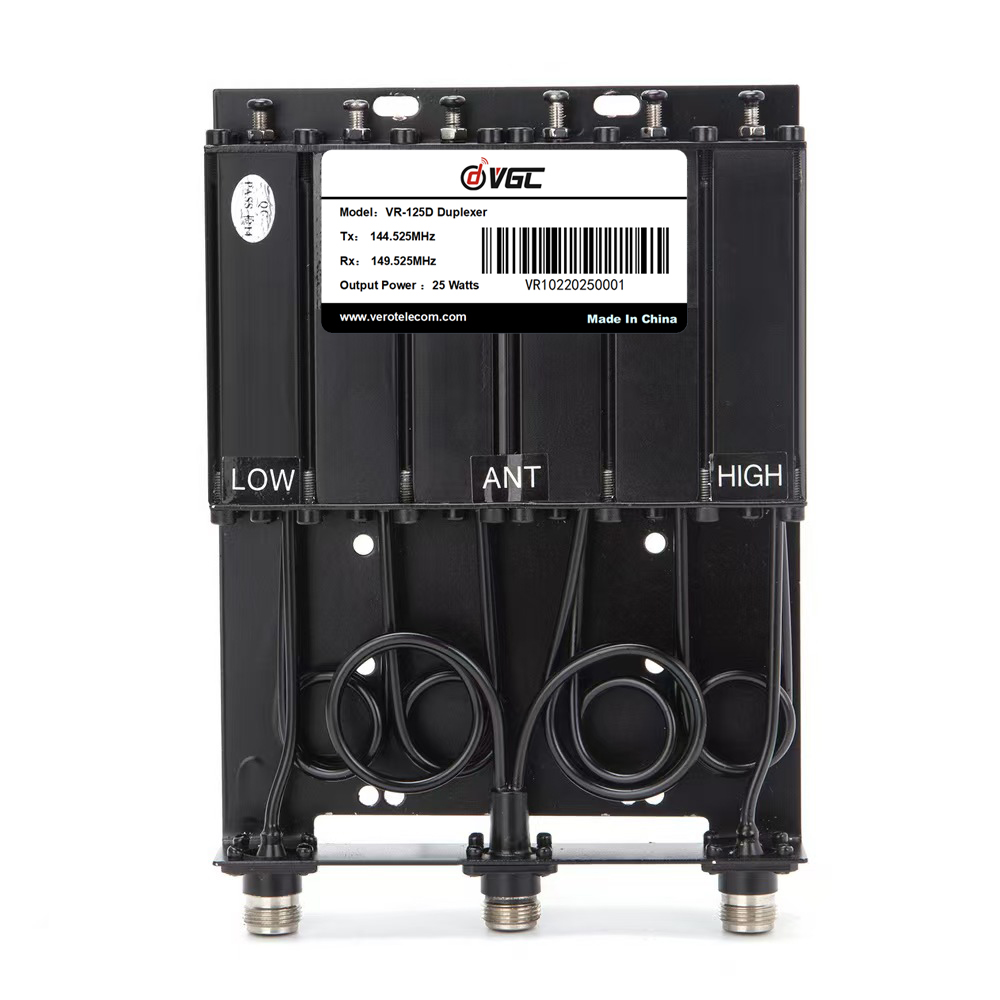

VR-125D VHF 136-174MHz 25W Commercial Cavity Duplexer
136-174 MHz VHF Core Band
25 Watts Continuous Rating
≤ 1.0 dB Ultra-Low Passband Loss
Invar Rods Thermal Stability
Commercial Fleet Deployments

Silver-Plated Resonators.
Zero Frequency Shifting.

The VR-125D incorporates high-Q internal silver-plated copper loops to achieve less than 1.0dB passband insertion loss. Perfectly tuned for agricultural dispatch systems, provincial tracking infrastructure, and medium-scale public transit grids.

📦 Target B2B Application Matrix
  • Medium-Power Base Relays: Drives enterprise site repeaters with high efficiency.
  • Forestry Operations: Provides continuous coverage under fluctuating high and low temperature shifts.
  • Commercial Land Mobile (LMR): Integrates smoothly with MotoTRBO or Kenwood business radio hubs.

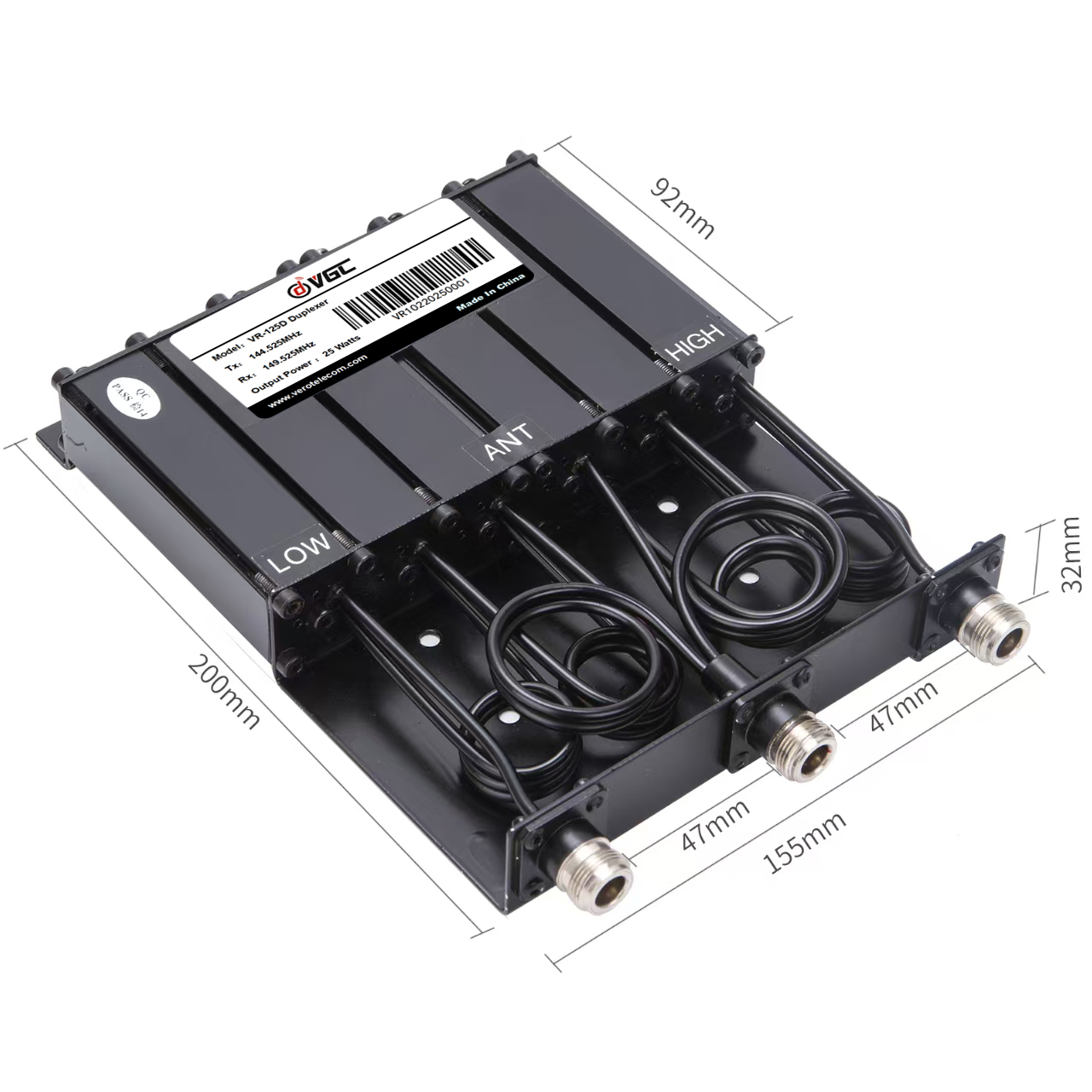

VR-125D VHF 25W Cavity Duplexer Insertion Sweep Table

Technical Specifications

Parameter Specification Value
Model Number VR-125D
Frequency Range 136 – 174 MHz (VHF)
Power Handling 25 Watts Max
Insertion Loss ≤ 1.0 dB
TX/RX Isolation ≥ 75 dB
Tuning Compensation Internal Invar Thermal Stabilization
